1211-08
[return to Table of Contents]

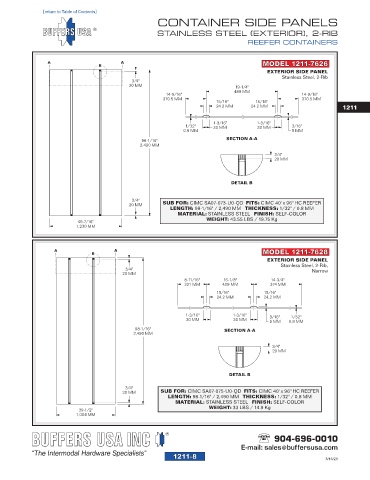

CONTAINER SIDE PANELS

STAINLESS STEEL (EXTERIOR), 2-RIB
REEFER CONTAINERS

A A MODEL 1211-7626
B
EXTERIOR SIDE PANEL
Stainless Steel, 2-Rib
3/4"
20 MM 19-1/4"
489 MM
14-9/16" 14-9/16"
370.5 MM 370.5 MM
15/16" 15/16"
24.2 MM 24.2 MM 1211

1-3/16" 1-3/16"
1/32" 30 MM 30 MM 3/16"
0.8 MM 5 MM
SECTION A-A
98-1/16"
2,490 MM
3/4"
20 MM

DETAIL B

3/4"
20 MM SUB FOR: CIMC SA07-073-U0-QD FITS: CIMC 40' x 96" HC REEFER
LENGTH: 98-1/16" / 2,490 MM THICKNESS: 1/32" / 0.8 MM
MATERIAL: STAINLESS STEEL FINISH: SELF-COLOR
WEIGHT: 43.55 LBS / 19.75 Kg
48-7/16"
1,230 MM

A A MODEL 1211-7628
B
EXTERIOR SIDE PANEL
Stainless Steel, 2-Rib,
3/4" Narrow
20 MM
8-11/16" 16-1/8" 14-3/4"
221 MM 409 MM 374 MM
15/16" 15/16"
24.2 MM 24.2 MM

1-3/16" 1-3/16" 3/16" 1/32"
30 MM 30 MM 5 MM 0.8 MM
98-1/16" SECTION A-A
2,490 MM

3/4"
20 MM

DETAIL B
3/4"
20 MM SUB FOR: CIMC SA07-075-U0-QD FITS: CIMC 40' x 96" HC REEFER
LENGTH: 98-1/16" / 2,490 MM THICKNESS: 1/32" / 0.8 MM
MATERIAL: STAINLESS STEEL FINISH: SELF-COLOR
WEIGHT: 33 LBS / 14.9 Kg
39-1/2"
1,004 MM

904-696-0010
E-mail: sales@buffersusa.com
1211-8 3/16/21
