1211-06
[return to Table of Contents]

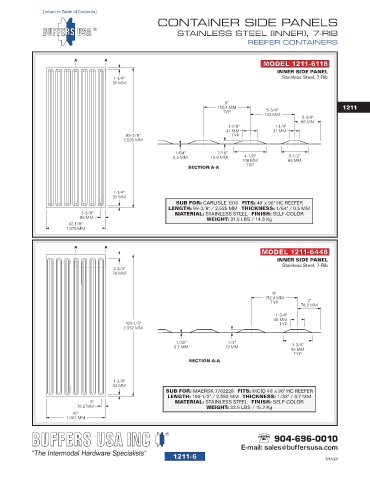

CONTAINER SIDE PANELS

STAINLESS STEEL (INNER), 7-RIB
REEFER CONTAINERS

A A
MODEL 1211-6118
INNER SIDE PANEL
1-1/4" Stainless Steel, 7-Rib
31 MM

6"
152.4 MM 1211
TYP 5-3/4"
145 MM
3-3/8"
86 MM
1-7/8" 1-1/4"
47 MM 31 MM
99-3/8" TYP
2,525 MM
1/64" 7/16"
0.5 MM 10.8 MM 4-1/8" 3-1/2"
106 MM 88 MM
TYP
SECTION A-A

1-1/4"
31 MM
SUB FOR: CARLISLE 1370 FITS: 40' x 96" HC REEFER
LENGTH: 99-3/8" / 2,525 MM THICKNESS: 1/64" / 0.5 MM
3-3/8" MATERIAL: STAINLESS STEEL FINISH: SELF-COLOR
86 MM WEIGHT: 31.5 LBS / 14.3 Kg
42-1/8"
1,070 MM

A A
MODEL 1211-6448
INNER SIDE PANEL
Stainless Steel, 7-Rib
2-3/4"
70 MM

6"
152.4 MM
TYP 3"
76.2 MM
1-3/4"
45 MM
100-1/2" TYP
2,552 MM

1/32" 1/2"
0.7 MM 12 MM 3-3/4"
95 MM
TYP
SECTION A-A

1-3/8"
34 MM
SUB FOR: MAERSK 7762228 FITS: MCIQ 40' x 96" HC REEFER
LENGTH: 100-1/2" / 2,552 MM THICKNESS: 1/32" / 0.7 MM
3" MATERIAL: STAINLESS STEEL FINISH: SELF-COLOR
76.2 MM WEIGHT: 33.5 LBS / 15.2 Kg
42"
1,067 MM
