1211-04
[return to Table of Contents]

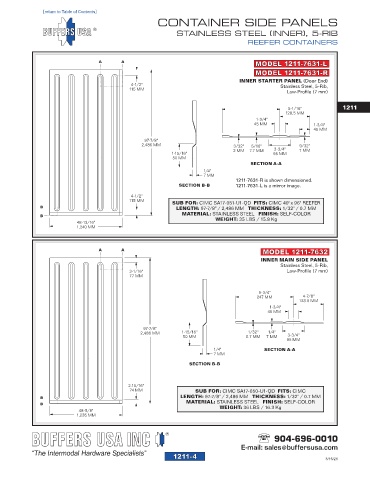

CONTAINER SIDE PANELS

STAINLESS STEEL (INNER), 5-RIB
REEFER CONTAINERS

A A MODEL 1211-7631-L
MODEL 1211-7631-R
INNER STARTER PANEL (Door End)
4-1/2" Stainless Steel, 5-Rib,
115 MM
Low-Profile (7 mm)

5-1/16" 1211
128.5 MM
1-3/4"
45 MM 1-3/4"
45 MM
97-7/8"
2,486 MM 3/32" 5/16" 9/32"
2 MM 7.7 MM 3-3/4" 7 MM
1-15/16" 95 MM
50 MM
SECTION A-A
1/4"
7 MM
1211-7631-R is shown dimensioned.
SECTION B-B 1211-7631-L is a mirror image.
4-1/2"
115 MM
SUB FOR: CIMC SA17-051-U1-QD FITS: CIMC 40' x 96" REEFER
B LENGTH: 97-7/8" / 2,486 MM THICKNESS: 1/32" / 0.7 MM
MATERIAL: STAINLESS STEEL FINISH: SELF-COLOR
B
WEIGHT: 35 LBS / 15.8 Kg
48-13/16"
1,240 MM

MODEL 1211-7632
A A
INNER MAIN SIDE PANEL
Stainless Steel, 5-Rib,
3-1/16" Low-Profile (7 mm)
77 MM

9-3/4"
247 MM 4-7/8"
123.5 MM
1-3/4"
45 MM

97-7/8"
2,486 MM 1-15/16" 1/32" 1/4" 3-3/4"
50 MM 0.7 MM 7 MM
95 MM
1/4" SECTION A-A
7 MM
SECTION B-B

2-15/16"
74 MM SUB FOR: CIMC SA17-050-U1-QD FITS: CIMC
B LENGTH: 97-7/8" / 2,486 MM THICKNESS: 1/32" / 0.7 MM
B MATERIAL: STAINLESS STEEL FINISH: SELF-COLOR
WEIGHT: 36 LBS / 16.3 Kg
48-5/8"
1,235 MM

904-696-0010
E-mail: sales@buffersusa.com
1211-4 3/15/21
