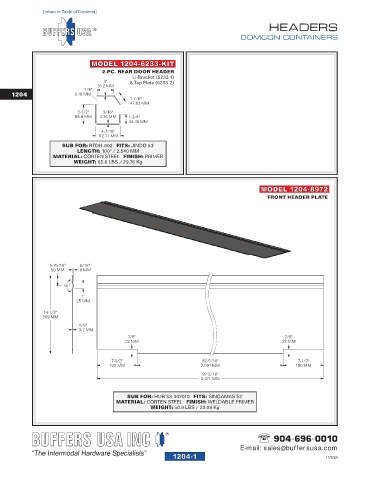

Page 36 - Buffers USA 2024 Container Hardware Catalog FlipBook

1204-01
[return to Table of Contents]
HEADERS

DOMCON CONTAINERS

SPECIAL ORDER ONLY MODEL 1204-2151-50 MODEL 1204-6233-KIT
FRONT HEADER PLATE 2-PC. REAR DOOR HEADER
U-Bracket (6233-1)
7/8" 1/8" 1/2" 3" & Top Plate (6233-2)
21.9 MM 3.5 MM 12.7 MM 1/8" 76.2 MM
1204 1" 3.18 MM
3" 4-1/4" 25.4 MM 1-7/8"
76.2 MM 108 MM 6-5/8" 47.63 MM
168.3 MM
3-1/2" 3/16"
3-1/2" 88.9 MM 4.76 MM 1-3/4"
88.9 MM 44.45 MM
1-3/4" 4-7/16"
44.5 MM 11-1/2" 112.71 MM
292.1 MM
SUB FOR: RTDH-002 FITS: JINDO 53'
FITS: HYUNDAI 53' x 102" LENGTH: 102" / 2,591 MM LENGTH: 100" / 2,540 MM
MATERIAL: CORTEN STEEL FINISH: PRIMER MATERIAL: CORTEN STEEL FINISH: PRIMER
WEIGHT: 80.4 LBS / 36.5 Kg WEIGHT: 65.6 LBS / 29.76 Kg

MODEL 1204-8972
FRONT HEADER PLATE

1-15/16" 5/16"
50 MM 8 MM

131°
1"
25 MM
14-1/2"
369 MM
1/8"
3.2 MM
7/8" 7/8"
22 MM 22 MM

7-1/2" 82-5/16" 7-1/2"
190 MM 2,091 MM 190 MM
97-5/16"
2,471 MM

SUB FOR: HUB 53-302010 FITS: SINGAMAS 53'
MATERIAL: CORTEN STEEL FINISH: WELDABLE PRIMER
WEIGHT: 50.9 LBS / 23.09 Kg

904-696-0010
E-mail: sales@buffersusa.com
1204-1 11/29/21
