Page 19 - Buffers USA 2024 Chassis Hardware Catalog FlipBook
P. 19
1001-09
[return to Table of Contents]

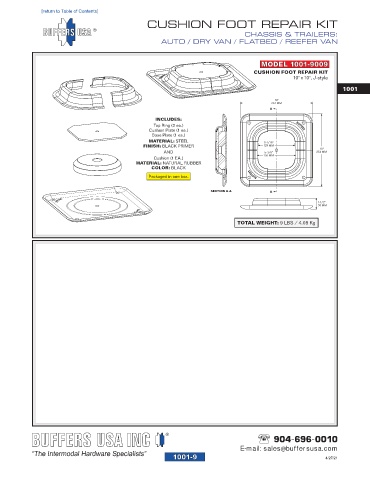

CUSHION FOOT REPAIR KIT
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN
MODEL 1001-9009
CUSHION FOOT REPAIR KIT
10" x 10", J-style
1001
10"
254 MM
A
INCLUDES:
Top Ring (2 ea.)
Cushion Plate (1 ea.)
Base Plate (1 ea.)
MATERIAL: STEEL 5-1/16"
FINISH: BLACK PRIMER 129 MM
10"
AND 5-3/8" 254 MM
136 MM
Cushion (1 EA.)
MATERIAL: NATURAL RUBBER
COLOR: BLACK
Packaged in one box.
SECTION A-A A
1-1/2"
38 MM
TOTAL WEIGHT: 9 LBS / 4.08 Kg
904-696-0010
E-mail: sales@buffersusa.com
1001-9 4/27/21
