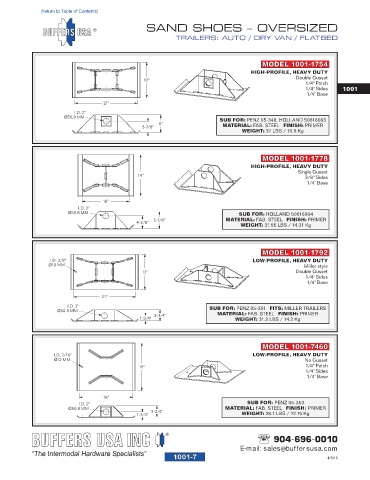

SAND SHOES – OVERSIZED

TRAILERS: AUTO / DRY VAN / FLATBED

MODEL 1001-1754
HIGH-PROFILE, HEAVY DUTY
Double Gusset
12"
1/4" Patch
1/4" Sides 1001
1/4" Base
21"
I.D. 2"
Ø50.8 MM SUB FOR: PENZ 05-348, HOLLAND 50616003
6" MATERIAL: FAB. STEEL FINISH: PRIMER
3-7/8"
WEIGHT: 37 LBS / 16.8 Kg

MODEL 1001-1778
HIGH-PROFILE, HEAVY DUTY
Single Gusset
14" 3/8" Sides
1/4" Base

16"
I.D. 2"
Ø50.8 MM SUB FOR: HOLLAND 50616004
5-7/8" MATERIAL: FAB. STEEL FINISH: PRIMER
4-3/8"
WEIGHT: 31.55 LBS / 14.31 Kg

MODEL 1001-1792
I.D. 3/8" LOW-PROFILE, HEAVY DUTY
Ø10 MM Miller style
12" Double Gusset
1/4" Sides
1/4" Base

21"
I.D. 2"
Ø50.8 MM SUB FOR: PENZ 05-351 FITS: MILLER TRAILERS
3-3/4" MATERIAL: FAB. STEEL FINISH: PRIMER
1-3/4" WEIGHT: 31.2 LBS / 14.2 Kg

MODEL 1001-7460

I.D. 7/16" LOW-PROFILE, HEAVY DUTY
Ø12 MM No Gusset
16" 1/4" Patch
1/4" Sides
1/4" Base

18"
I.D. 2" SUB FOR: PENZ 05-353
Ø50.8 MM 3-3/4" MATERIAL: FAB. STEEL FINISH: PRIMER
1-3/4" WEIGHT: 28.1 LBS / 12.75 Kg
