1001-08
[return to Table of Contents]

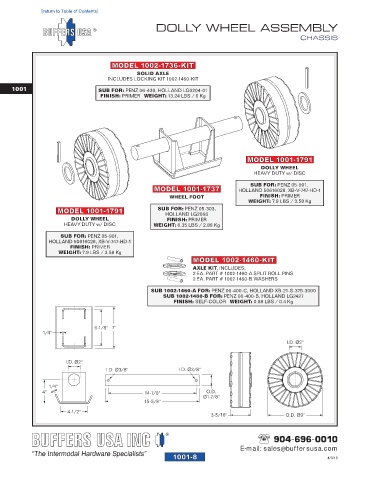

DOLLY WHEEL ASSEMBLY

CHASSIS

MODEL 1002-1736-KIT
SOLID AXLE
INCLUDES LOCKING KIT 1002-1460-KIT
1001 SUB FOR: PENZ 06-430, HOLLAND LG0204-01
FINISH: PRIMER WEIGHT: 13.24 LBS / 6 Kg

MODEL 1001-1791
DOLLY WHEEL
HEAVY DUTY w/ DISC

SUB FOR: PENZ 05-901,
MODEL 1001-1737 HOLLAND 50616028, XB-V-747-HD-1
WHEEL FOOT FINISH: PRIMER
WEIGHT: 7.9 LBS / 3.58 Kg
MODEL 1001-1791 SUB FOR: PENZ 05-303,
HOLLAND LG2066
DOLLY WHEEL FINISH: PRIMER
HEAVY DUTY w/ DISC WEIGHT: 6.35 LBS / 2.88 Kg
SUB FOR: PENZ 05-901,
HOLLAND 50616028, XB-V-747-HD-1
FINISH: PRIMER
WEIGHT: 7.9 LBS / 3.58 Kg
MODEL 1002-1460-KIT
AXLE KIT, INCLUDES:
2 EA. PART # 1002-1460-A SPLIT ROLL PINS
2 EA. PART # 1002-1460-B WASHERS
SUB 1002-1460-A FOR: PENZ 06-400-C, HOLLAND XB-21-S-375-3000
SUB 1002-1460-B FOR: PENZ 06-400-B, HOLLAND LG2427
FINISH: SELF-COLOR WEIGHT: 0.88 LBS / 0.4 Kg

6-1/8" 7"
1/4"
I.D. Ø2"

I.D. Ø2"
I.D. Ø3/8" I.D. Ø3/8"

1/4"
4" 14-7/8" O.D.
Ø1-7/8"
15-5/8"
4-1/2"
3-5/16" O.D. Ø9"

904-696-0010
E-mail: sales@buffersusa.com
1001-8 4/3/19
