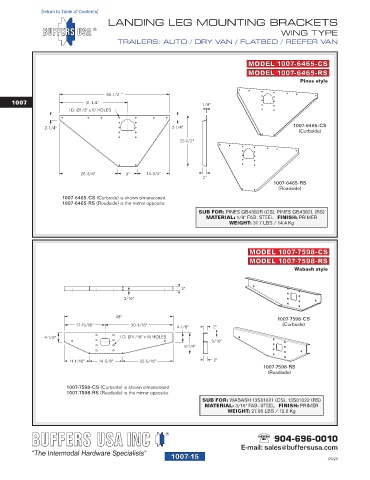

Page 60 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1007-15
[return to Table of Contents]
LANDING LEG MOUNTING BRACKETS
WING TYPE
TRAILERS: AUTO / DRY VAN / FLATBED / REEFER VAN

MODEL 1007-6465-CS
MODEL 1007-6465-RS
Pines style

50-1/2 "
1007 31-1/4" 1/8"
I.D. Ø1/2" x 17 HOLES

2-1/4" 2-1/4" 1007-6465-CS
(Curbside)
23-1/2"

26-3/4" 9" 14-3/4"
2"
1007-6465-RS
(Roadside)
1007-6465-CS (Curbside) is shown dimensioned.
1007-6465-RS (Roadside) is the mirror opposite.
SUB FOR: PINES GB4382R (CS), PINES GB4382L (RS)
MATERIAL: 1/8" FAB. STEEL FINISH: PRIMER
WEIGHT: 31.7 LBS / 14.4 Kg

MODEL 1007-7598-CS
MODEL 1007-7598-RS
Wabash style

2"
3/16"

48" 1007-7598-CS
17-15/16" 30-1/16" (Curbside)
4-1/8" 2"
4-1/8" I.D. Ø11/16" x 10 HOLES
3/16"
9-1/4"

11-1/16" 14-5/8" 22-5/16" 2"
1007-7598-RS
(Roadside)

1007-7598-CS (Curbside) is shown dimensioned.
1007-7598-RS (Roadside) is the mirror opposite.
SUB FOR: WABASH 13S01021 (CS), 13S01022 (RS)
MATERIAL: 3/16" FAB. STEEL FINISH: PRIMER
WEIGHT: 27.85 LBS / 12.6 Kg

904-696-0010
E-mail: sales@buffersusa.com
1007-15 7/6/21
