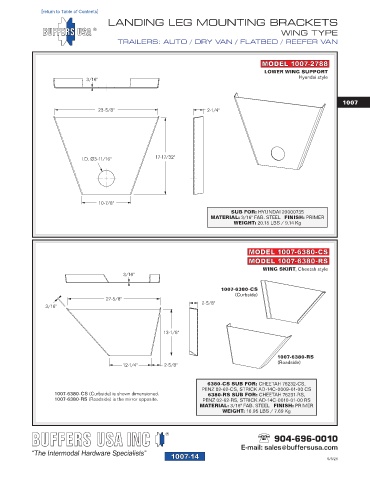

Page 59 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1007-14
[return to Table of Contents]
LANDING LEG MOUNTING BRACKETS
WING TYPE
TRAILERS: AUTO / DRY VAN / FLATBED / REEFER VAN

MODEL 1007-2788
LOWER WING SUPPORT
3/16" Hyundai style

1007
23-5/8" 2-1/4"

I.D. Ø3-11/16" 17-17/32"

10-7/8"
SUB FOR: HYUNDAI 20000735
MATERIAL: 3/16" FAB. STEEL FINISH: PRIMER
WEIGHT: 20.15 LBS / 9.14 Kg

MODEL 1007-6380-CS
MODEL 1007-6380-RS
WING SKIRT, Cheetah style
3/16"

1007-6380-CS
(Curbside)
27-5/8"
3/16" 2-5/8"

13-1/8"

1007-6380-RS
(Roadside)
12-1/4" 2-5/8"

6380-CS SUB FOR: CHEETAH 76232-CS,
PENZ 02-62-CS, STRICK AD-14C-0009-01-00 CS
1007-6380-CS (Curbside) is shown dimensioned. 6380-RS SUB FOR: CHEETAH 76231-RS,
1007-6380-RS (Roadside) is the mirror opposite. PENZ 02-62-RS, STRICK AD-14C-0010-01-00 RS
MATERIAL: 3/16" FAB. STEEL FINISH: PRIMER
WEIGHT: 16.95 LBS / 7.69 Kg

904-696-0010
E-mail: sales@buffersusa.com
1007-14 5/3/21
