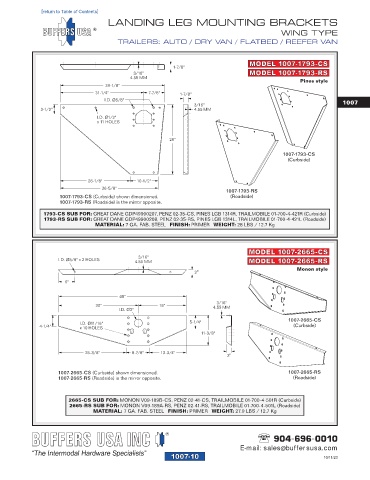

LANDING LEG MOUNTING BRACKETS
WING TYPE
TRAILERS: AUTO / DRY VAN / FLATBED / REEFER VAN

MODEL 1007-1793-CS
1-7/8"
3/16" MODEL 1007-1793-RS
4.55 MM
Pines style
39-1/8"
31-1/4" 7-7/8" 1-7/8"
I.D. Ø5/8" 1007
3/16"
3-1/2" 4.55 MM
I.D. Ø1/2"
x 11 HOLES

26"

1007-1793-CS
(Curbside)

26-1/8" 10-1/2"
36-5/8"
1007-1793-RS
1007-1793-CS (Curbside) shown dimensioned. (Roadside)
1007-1793-RS (Roadside) is the mirror opposite.

1793-CS SUB FOR: GREAT DANE GDP49900207, PENZ 02-35-CS, PINES LGB 1314R, TRAILMOBILE 01-700-4-421R (Curbside)
1793-RS SUB FOR: GREAT DANE GDP49900208, PENZ 02-35-RS, PINES LGB 1314L, TRAILMOBILE 01-700-4-421L (Roadside)
MATERIAL: 7 GA. FAB. STEEL FINISH: PRIMER WEIGHT: 28 LBS / 12.7 Kg

MODEL 1007-2665-CS
3/16"
I.D. Ø5/8" x 2 HOLES 4.55 MM MODEL 1007-2665-RS
Monon style
2"
6"

48"
3/16"
30" 18" 4.55 MM
I.D. Ø3"
1007-2665-CS
I.D. Ø11/16" 5-1/4"
4-1/4" x 10 HOLES (Curbside)
11-3/8"

25-3/8" 8-7/8" 13-3/4"
2"

1007-2665-CS (Curbside) shown dimensioned. 1007-2665-RS
1007-2665-RS (Roadside) is the mirror opposite. (Roadside)

2665-CS SUB FOR: MONON V09-189B-CS, PENZ 02-41-CS, TRAILMOBILE 01-700-4-501R (Curbside)
2665-RS SUB FOR: MONON V09-189A-RS, PENZ 02-41-RS, TRAILMOBILE 01-700-4-501L (Roadside)
MATERIAL: 7 GA. FAB. STEEL FINISH: PRIMER WEIGHT: 27.9 LBS / 12.7 Kg
