1401-05
[return to Table of Contents]
SWING DOOR LOCKING SYSTEMS
BOLT-ON MINER-STYLE KITS
DRY VAN TRAILERS

MODEL 1401-8309-L-KIT
1401-8309-R-KIT
1401-8309-L-KIT NOTE: All components are supplied loose. Narrow Header & Standard Sill,
COMPONENT QTYS PER KIT
LOCK ROD HARDWARE KIT
Left-Locking
BUFFERS
ITEM MODEL # DESCRIPTION SUB FOR: TYPE: DL-NH
1 1401-2582 2 2 SPLIT BUSHINGS SET (2 halves), Long Miner 4042 MATERIAL: STEEL

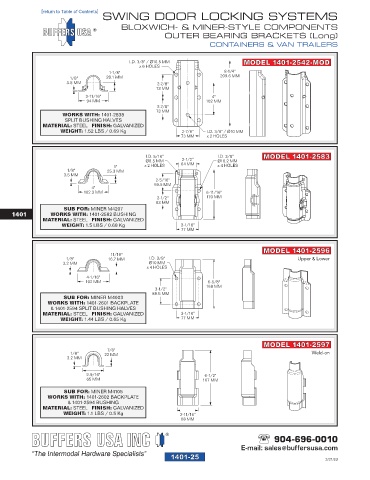

2 1401-2583 2 2 BEARING BRACKET, Long Miner 4207 FINISH: HOT-DIP GALVANIZED
3 1401-2589 2 2 SPLIT BUSHINGS SET (2 halves), Short Miner 4207 WEIGHT: 12 LBS / 5.5 Kg
4 1401-2606 2 2 BEARING BRACKET, Short Miner 4005
5 1401-2585 1 1 HANDLE, Pressed Miner 4090
6 1401-2588 1 1 RETAINER PLATE Miner 4011 MODEL 1401-8309-R-KIT
7 1401-2584 1 1 RETAINER CATCH Miner 4012
8 1401-8149 1 1 HANDLE HUB MOUNTING BRACKET Miner 4208 LOCK ROD HARDWARE KIT
9 1401-2587 1 1 RIVET for Handle Miner 4049 Narrow Header & Standard Sill,
10 1401-2580 1 1 KEEPER (DL), Top & Bottom, Non-handed Miner 1064 Right-Locking
11 1401-7395 1 1 KEEPER (NH), Top Left & Top Right Miner 4140
12 1401-2581-L 1 0 CAM (DL), Top Right or Bottom Left Miner 4044 TYPE: DL-NH
13 1401-2581-R 0 1 CAM (DL), Top Left or Bottom Right Miner 4043 MATERIAL: STEEL
14 1401-7390-TL 1 0 CAM (NH), Top Left Miner 4141 FINISH: HOT-DIP GALVANIZED
15 1401-7390-TR 0 1 CAM (NH), Top Right Miner 4142 WEIGHT: 12 LBS / 5.5 Kg
*OPTIONAL FASTENERS & PIPE ARE NOT INCLUDED IN KIT:
A 1401-4705 1 1 HEX BOLT M10-1.5 x 35mm, HDG CIMC D27-02
B 1401-4706 12 12 HEX BOLT M10-1.5 x 25mm, HDG CIMC D27-01
C 1401-4707 13 13 HEX NUT M10, HDG w/ Nylon Insert — n/a —
D 1401-4708 13 13 LOCK WASHER, 10mm, HDG — n/a —
1401 E 1401-6204-120-1.05 1 1 LOCK ROD PIPE, SCH 40, 120", HDG — n/a —
14,15
11
CAM & KEEPER LOCATION DETAILS
2
D* 1401-7390-TL 1401-7390-TR
(x4)
1 C*
(x4)
1401-7395 1401-7395
1
B*
(x4)
D*
3 4 (x2) C* E* D* C*
(x2) 6 *Pipe is NOT included
7 in hardware kit.
3 A*
B*
(x2)
D* 8
3 4 (x2)
C* 9
(x2) 1401-8309-L-KIT 1401-8309-R-KIT
HANDLE HANDLE
3 5 LOCKING LOCKING
B* TO LEFT TO RIGHT
(x2)
D* *Pipe and fasteners
(x4) E* are NOT included
1 C*
(x4) in hardware kit.
1401-2580 1401-2580
1 10
B* 1401-2581-L 1401-2581-R
(x4)
2
12,13

904-696-0010
E-mail: sales@buffersusa.com
1401-5 9/3/24
