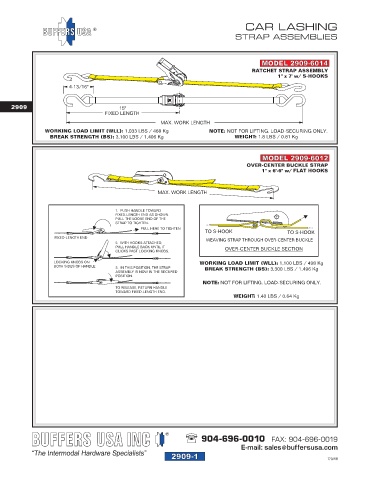

Page 46 - Buffers USA 2024 Lashing Gear & Marine Hardware Catalog FlipBook

2909-01

CAR LASHING
®
STRAP ASSEMBLIES

MODEL 2909-6014
RATCHET STRAP ASSEMBLY
1" x 7' w/ S-HOOKS
4-13/16"

2909 15"
FIXED LENGTH
MAX. WORK LENGTH
WORKING LOAD LIMIT (WLL): 1,033 LBS / 468 Kg NOTE: NOT FOR LIFTING. LOAD-SECURING ONLY.
BREAK STRENGTH (BS): 3,100 LBS / 1,406 Kg WEIGHT: 1.8 LBS / 0.81 Kg

MODEL 2909-6012
OVER-CENTER BUCKLE STRAP
1" x 6'-6" w/ FLAT HOOKS

MAX. WORK LENGTH

1. PUSH HANDLE TOWARD
FIXED-LENGTH END AS SHOWN.
PULL THE LOOSE END OF THE
STRAP TO TIGHTEN.
PULL HERE TO TIGHTEN
TO S-HOOK TO S-HOOK
FIXED-LENGTH END WEAVING STRAP THROUGH OVER-CENTER BUCKLE
2. WITH HOOKS ATTACHED,
PULL HANDLE BACK UNTIL IT
CLICKS PAST LOCKING KNOBS. OVER-CENTER BUCKLE SECTION
LOCKING KNOBS ON WORKING LOAD LIMIT (WLL): 1,100 LBS / 498 Kg
BOTH SIDES OF HANDLE 3. IN THIS POSITION, THE STRAP
ASSEMBLY IS NOW IN THE SECURED BREAK STRENGTH (BS): 3,300 LBS / 1,496 Kg
POSITION.
NOTE: NOT FOR LIFTING. LOAD-SECURING ONLY.
TO RELEASE, RETURN HANDLE
TOWARD FIXED-LENGTH END.
WEIGHT: 1.40 LBS / 0.64 Kg

®
