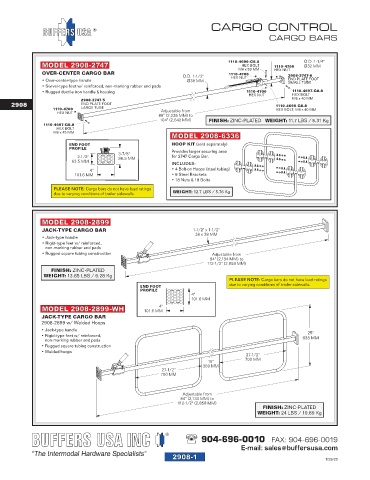

Page 44 - Buffers USA 2024 Lashing Gear & Marine Hardware Catalog FlipBook

2908-01

CARGO CONTROL
®
CARGO BARS

MODEL 2908-2747 1110-4699-G8.8 1110-4700 O.D. 1-1/4"
Ø32 MM
HEX BOLT
M6 x 50 MM HEX NUT
OVER-CENTER CARGO BAR 1110-4700
O.D. 1-1/2" HEX NUT 2908-2747-6
• Over-center-type handle Ø38 MM END PLATE FOOT
SMALL TUBE
• Swivel-type feet w/ reinforced, non-marking rubber end pads
• Rugged ductile iron handle & housing 1110-4700 1110-4697-G8.8
HEX NUT HEX BOLT
2908-2747-5 M6 x 40 MM
2908 END PLATE FOOT 1110-4698-G8.8
1110-4700 LARGE TUBE Adjustable from HEX BOLT, M6 x 40 MM
HEX NUT
88" (2,235 MM) to
104" (2,642 MM) FINISH: ZINC-PLATED WEIGHT: 11.7 LBS / 5.31 Kg
1110-4697-G8.8
HEX BOLT
M6 x 45 MM
MODEL 2908-6336
END FOOT HOOP KIT (sold separately)
PROFILE
3-7/8" Provides larger securing area
2-1/2" 98.5 MM for 2747 Cargo Bar.
63.5 MM
INCLUDES:
4" • 4 Bolt-on Hoops (steel tubing)
101.6 MM • 8 Steel Brackets
• 18 Nuts & 18 Bolts
PLEASE NOTE: Cargo bars do not have load ratings
due to varying conditions of trailer sidewalls. WEIGHT: 12.7 LBS / 5.76 Kg
MODEL 2908-2899
JACK-TYPE CARGO BAR 1-1/2" x 1-1/2"
38 x 38 MM
• Jack-type handle
• Rigid-type feet w/ reinforced,
non-marking rubber end pads
• Rugged square tubing construction Adjustable from
84" (2,134 MM) to
112-1/2" (2,858 MM)
FINISH: ZINC-PLATED
WEIGHT: 13.85 LBS / 6.28 Kg
PLEASE NOTE: Cargo bars do not have load ratings
due to varying conditions of trailer sidewalls.
END FOOT
PROFILE
4"
101.6 MM
4"
MODEL 2908-2899-WH 101.6 MM
JACK-TYPE CARGO BAR
2908-2899 w/ Welded Hoops
• Jack-type handle 25"
• Rigid-type feet w/ reinforced, 635 MM
non-marking rubber end pads
• Rugged square tubing construction
• Welded hoops
27-1/2"
700 MM
15"
380 MM
27-1/2"
700 MM

Adjustable from
84" (2,134 MM) to
112-1/2" (2,858 MM)
FINISH: ZINC-PLATED
WEIGHT: 24 LBS / 10.89 Kg

®
904-696-0010 FAX: 904-696-0019
E-mail: sales@buffersusa.com
2908-1 1/29/20
