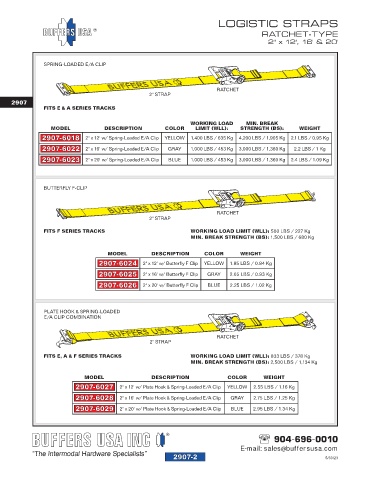

Page 42 - Buffers USA 2024 Lashing Gear & Marine Hardware Catalog FlipBook

2907-02

LOGISTIC STRAPS
RATCHET-TYPE
2" x 12', 16' & 20'

SPRING-LOADED E/A CLIP

RATCHET
2" STRAP
2907
FITS E & A SERIES TRACKS

WORKING LOAD MIN. BREAK
MODEL DESCRIPTION COLOR LIMIT (WLL): STRENGTH (BS): WEIGHT
2907-6018 2" x 12' w/ Spring-Loaded E/A Clip YELLOW 1,400 LBS / 635 Kg 4,200 LBS / 1,905 Kg 2.1 LBS / 0.95 Kg

2907-6022 2" x 16' w/ Spring-Loaded E/A Clip GRAY 1,000 LBS / 453 Kg 3,000 LBS / 1,360 Kg 2.2 LBS / 1 Kg
2907-6023 2" x 20' w/ Spring-Loaded E/A Clip BLUE 1,000 LBS / 453 Kg 3,000 LBS / 1,360 Kg 2.4 LBS / 1.09 Kg

BUTTERFLY F-CLIP

RATCHET
2" STRAP

FITS F SERIES TRACKS WORKING LOAD LIMIT (WLL): 500 LBS / 227 Kg
MIN. BREAK STRENGTH (BS): 1,500 LBS / 680 Kg

MODEL DESCRIPTION COLOR WEIGHT
2907-6024 2" x 12' w/ Butterfly F Clip YELLOW 1.85 LBS / 0.84 Kg

2907-6025 2" x 16' w/ Butterfly F Clip GRAY 2.05 LBS / 0.93 Kg
2907-6026 2" x 20' w/ Butterfly F Clip BLUE 2.25 LBS / 1.02 Kg

PLATE HOOK & SPRING-LOADED
E/A CLIP COMBINATION

RATCHET
2" STRAP

FITS E, A & F SERIES TRACKS WORKING LOAD LIMIT (WLL): 833 LBS / 378 Kg
MIN. BREAK STRENGTH (BS): 2,500 LBS / 1,134 Kg

MODEL DESCRIPTION COLOR WEIGHT
2907-6027 2" x 12' w/ Plate Hook & Spring-Loaded E/A Clip YELLOW 2.55 LBS / 1.16 Kg
2907-6028 2" x 16' w/ Plate Hook & Spring-Loaded E/A Clip GRAY 2.75 LBS / 1.25 Kg
2907-6029 2" x 20' w/ Plate Hook & Spring-Loaded E/A Clip BLUE 2.95 LBS / 1.34 Kg

904-696-0010
E-mail: sales@buffersusa.com
2907-2 5/30/23
