STACKING CONES
®
BOTTOM TYPE, OVERVIEW

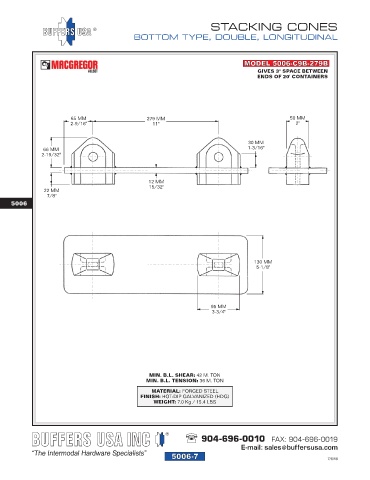

MODEL 5006-C9A-B MODEL 5006-C9B-B
DOUBLE, TRANSVERSAL DOUBLE, LONGITUDINAL
X Z
T T
5006
B B
L L
TENSION SHEAR DIMENSIONS
BREAKING LOAD BREAKING LOAD
MODEL (M. TON) (M. TON) X Z L B T WEIGHT
203 MM 333 MM 130 MM 12 MM 6.6 Kg
5006-C9A-203B 36 42 -
8" 13-1/8" 5-1/8" 15/32" 14.6 LBS
258 MM 338 MM 130 MM 12 MM 7.3 Kg
5006-C9A-258B 36 42 -
10-5/32" 13-5/16" 5-1/8" 15/32" 16.1 LBS
5006-C9B-279B 36 42 - 279 MM 409 MM 130 MM 12 MM 7.7 Kg
11" 16-1/8" 5-1/8" 15/32" 17 LBS
CLASS APPROVED
MATERIAL: FORGED STEEL, WELDED
FINISH: HOT-DIP GALVANIZED (HDG)
®
