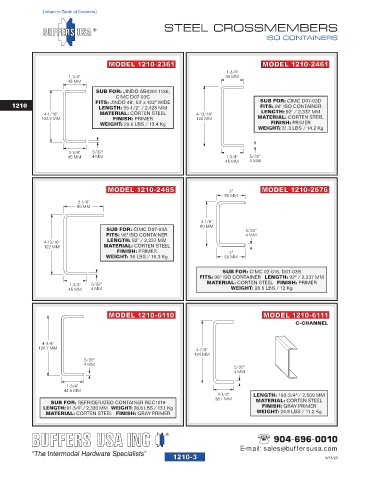

Page 80 - Buffers USA 2024 Container Hardware Catalog FlipBook

1210-03
[return to Table of Contents]
STEEL CROSSMEMBERS

ISO CONTAINERS

MODEL 1210-2361 MODEL 1210-2461
1-3/4"
1-3/4" 45 MM
45 MM
SUB FOR: JINDO AB0201-1136,
CIMC D07-03C SUB FOR: CIMC D07-03D
1210 FITS: JINDO 48', 53' x 102" WIDE FITS: 96" ISO CONTAINER
LENGTH: 95-1/2" / 2,428 MM
4-1/16" MATERIAL: CORTEN STEEL 4-13/16" LENGTH: 92" / 2,337 MM
102.5 MM FINISH: PRIMER 122 MM MATERIAL: CORTEN STEEL
WEIGHT: 29.6 LBS / 13.4 Kg FINISH: PRIMER
WEIGHT: 31.3 LBS / 14.2 Kg

1-3/4" 5/32"
45 MM 4 MM 1-3/4" 5/32"
45 MM 4 MM

MODEL 1210-2465 2" MODEL 1210-2676
50 MM
3-1/8"
80 MM

3-1/8"
80 MM
SUB FOR: CIMC D07-03A 5/32"
FITS: 96" ISO CONTAINER 4 MM
4-13/16" LENGTH: 92" / 2,337 MM
122 MM MATERIAL: CORTEN STEEL
FINISH: PRIMER 2"
WEIGHT: 36 LBS / 16.3 Kg 50 MM

SUB FOR: CIMC 02-016, D07-03B
FITS: 96" ISO CONTAINER LENGTH: 92" / 2,337 MM
1-3/4" 5/32" MATERIAL: CORTEN STEEL FINISH: PRIMER
45 MM 4 MM WEIGHT: 26.5 LBS / 12 Kg

MODEL 1210-6110 MODEL 1210-6111
C-CHANNEL

4-3/4"
120.7 MM 4-7/8"
124 MM
5/32"
4 MM
5/32"
4 MM
1-3/4"
44.5 MM
1-1/2" LENGTH: 100-3/4" / 2,560 MM
38.1 MM MATERIAL: CORTEN STEEL
SUB FOR: REFRIGERATED CONTAINER RCC1019
LENGTH: 91-3/4" / 2,330 MM WEIGHT: 28.8 LBS / 13.1 Kg FINISH: GRAY PRIMER
MATERIAL: CORTEN STEEL FINISH: GRAY PRIMER WEIGHT: 24.8 LBS / 11.2 Kg

904-696-0010
E-mail: sales@buffersusa.com
1210-3 9/13/23
