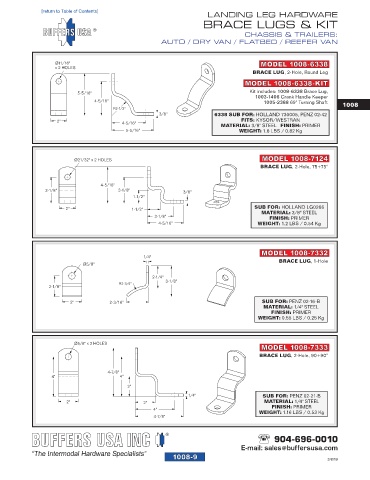

Page 51 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1008-09
[return to Table of Contents]
LANDING LEG HARDWARE
BRACE LUGS & KIT
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

Ø11/16" MODEL 1008-6338
x 2 HOLES
BRACE LUG, 2-Hole, Round Leg
MODEL 1008-6338-KIT

5-5/16" Kit includes: 1008-6338 Brace Lug,
1003-1406 Crank Handle Keeper
4-5/16" 1005-2388 69" Turning Shaft 1008
R2-1/2"
3/8" 6338 SUB FOR: HOLLAND 730005, PENZ 02-42
2" 4-5/16" FITS: KYSOR/WESTRAN
MATERIAL: 3/8" STEEL FINISH: PRIMER
5-5/16" WEIGHT: 1.8 LBS / 0.82 Kg

Ø21/32" x 2 HOLES MODEL 1008-7124
BRACE LUG, 2-Hole, 75+75°

4-5/16"
3-1/8" 3-1/8" 3/8"
1-1/2"
2" 1-1/2" SUB FOR: HOLLAND LG0266
MATERIAL: 3/8" STEEL
3-1/8" FINISH: PRIMER
4-5/16" WEIGHT: 1.2 LBS / 0.54 Kg

MODEL 1008-7332
1/4"
BRACE LUG, 1-Hole
Ø5/8"

2-1/4"
3-1/8"
R2-3/4"
2-1/8"
2" 2-3/16" SUB FOR: PENZ 02-16-B
MATERIAL: 1/4" STEEL
FINISH: PRIMER
WEIGHT: 0.55 LBS / 0.25 Kg

Ø5/8" x 2 HOLES
MODEL 1008-7333
BRACE LUG, 2-Hole, 90+90°

4-7/8"
4" 4"
2"
1/4" SUB FOR: PENZ 02-21-B
2" 2" MATERIAL: 1/4" STEEL
FINISH: PRIMER
4" WEIGHT: 1.16 LBS / 0.53 Kg
4-7/8"

904-696-0010
E-mail: sales@buffersusa.com
1008-9 3/8/19
