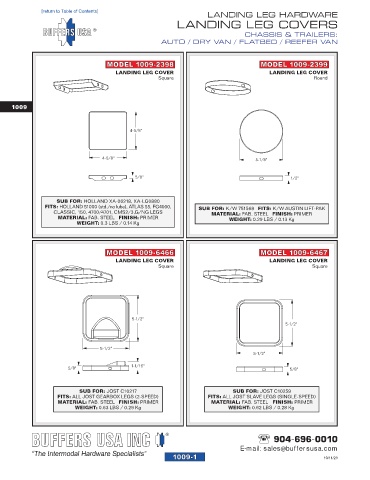

Page 54 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1009-01
[return to Table of Contents]
LANDING LEG HARDWARE
LANDING LEG COVERS
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

MODEL 1009-2398 MODEL 1009-2399
LANDING LEG COVER LANDING LEG COVER
Square Round

1009

4-5/8"

4-5/8" 5-1/8"

5/8" 1/2"

SUB FOR: HOLLAND XA-06218, XA-LG0880
FITS: HOLLAND 51000 (std./no lube), ATLAS 55, FG4000, SUB FOR: K/W 751568 FITS: K/W AUSTIN LIFT-PAK
CLASSIC, 150, 4700/4701, CMS2/3,G/NG LEGS MATERIAL: FAB. STEEL FINISH: PRIMER
MATERIAL: FAB. STEEL FINISH: PRIMER WEIGHT: 0.29 LBS / 0.13 Kg
WEIGHT: 0.3 LBS / 0.14 Kg

MODEL 1009-6466 MODEL 1009-6467
LANDING LEG COVER LANDING LEG COVER
Square Square

5-1/2"
5-1/2"

5-1/2"
5-1/2"

1-1/16"
5/8" 5/8"

SUB FOR: JOST C10217 SUB FOR: JOST C10259
FITS: ALL JOST GEARBOX LEGS (2-SPEED) FITS: ALL JOST SLAVE LEGS (SINGLE-SPEED)
MATERIAL: FAB. STEEL FINISH: PRIMER MATERIAL: FAB. STEEL FINISH: PRIMER
WEIGHT: 0.63 LBS / 0.29 Kg WEIGHT: 0.62 LBS / 0.28 Kg

904-696-0010
E-mail: sales@buffersusa.com
1009-1 10/11/23
