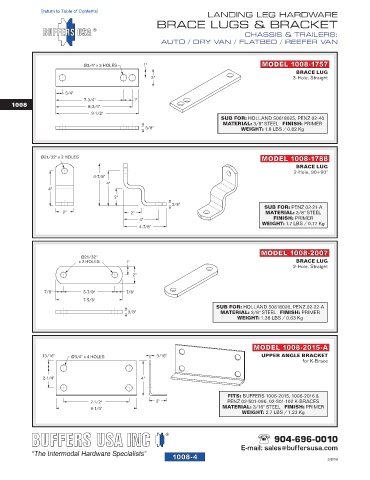

LANDING LEG HARDWARE
BRACE LUGS & BRACKET
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

Ø3/4" x 3 HOLES 1" MODEL 1008-1757
BRACE LUG
2" 3-Hole, Straight

3/4"
7-3/4" 1"
1008 8-3/4"
9-1/2"
SUB FOR: HOLLAND 50618025, PENZ 02-40
MATERIAL: 3/8" STEEL FINISH: PRIMER
3/8" WEIGHT: 1.8 LBS / 0.82 Kg

Ø21/32" x 2 HOLES MODEL 1008-1788
BRACE LUG
2-Hole, 90+90°
4-7/8"
4"
4"
2"
3/8"
SUB FOR: PENZ 02-21-A
2" 2" MATERIAL: 3/8" STEEL
4" FINISH: PRIMER
WEIGHT: 1.7 LBS / 0.77 Kg
4-7/8"

MODEL 1008-2007
Ø21/32"
x 2 HOLES 1" BRACE LUG
2-Hole, Straight
2"

7/8" 5-7/8" 7/8"
7-5/8"
SUB FOR: HOLLAND 50618026, PENZ 02-22-A
3/8" MATERIAL: 3/8" STEEL FINISH: PRIMER
WEIGHT: 1.38 LBS / 0.63 Kg

MODEL 1008-2015-A
13/16" Ø3/4" x 4 HOLES 3/16" UPPER ANGLE BRACKET
for K-Brace

2-1/4" 4"

FITS: BUFFERS 1006-2015, 1006-2016 &
7-1/2" 2" PENZ 02-501-096, 02-501-102 K-BRACES
9-1/4" MATERIAL: 3/16" STEEL FINISH: PRIMER
WEIGHT: 2.7 LBS / 1.23 Kg

904-696-0010
E-mail: sales@buffersusa.com
1008-4 3/8/19
