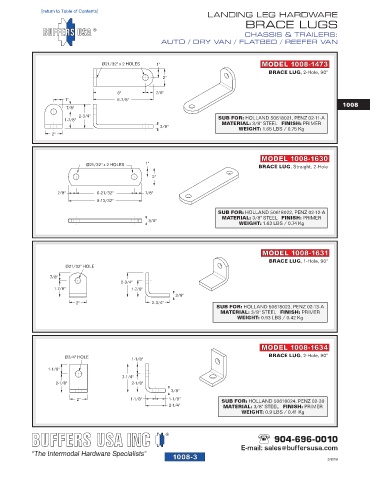

Page 45 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1008-03
[return to Table of Contents]
LANDING LEG HARDWARE
BRACE LUGS
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

Ø21/32" x 2 HOLES 1" MODEL 1008-1473
BRACE LUG, 2-Hole, 90°
2"

6" 7/8"
1" 6-7/8"
1008
7/8"
2-3/4"
1-7/8" SUB FOR: HOLLAND 50618021, PENZ 02-11-A
3/8" MATERIAL: 3/8" STEEL FINISH: PRIMER
WEIGHT: 1.65 LBS / 0.75 Kg
2"

MODEL 1008-1630
Ø21/32" x 2 HOLES 1" BRACE LUG, Straight, 2-Hole

2"

7/8" 6-21/32" 7/8"
8-13/32"
SUB FOR: HOLLAND 50618022, PENZ 02-12-A
MATERIAL: 3/8" STEEL FINISH: PRIMER
3/8"
WEIGHT: 1.63 LBS / 0.74 Kg

MODEL 1008-1631
BRACE LUG, 1-Hole, 90°
Ø21/32" HOLE

7/8"
2-3/4"
1-7/8" 1-7/8"
3/8"
2" 2-3/4"
SUB FOR: HOLLAND 50618023, PENZ 02-13-A
MATERIAL: 3/8" STEEL FINISH: PRIMER
WEIGHT: 0.93 LBS / 0.42 Kg

MODEL 1008-1634
Ø3/4" HOLE 1-1/8" BRACE LUG, 2-Hole, 90°

1-1/8"
3-1/4"
2-1/8" 2-1/8"
3/8"
2" 1-1/8" 1-1/8" SUB FOR: HOLLAND 50618024, PENZ 02-39
2-1/4" MATERIAL: 3/8" STEEL FINISH: PRIMER
WEIGHT: 0.9 LBS / 0.41 Kg

904-696-0010
E-mail: sales@buffersusa.com
1008-3 3/8/19
