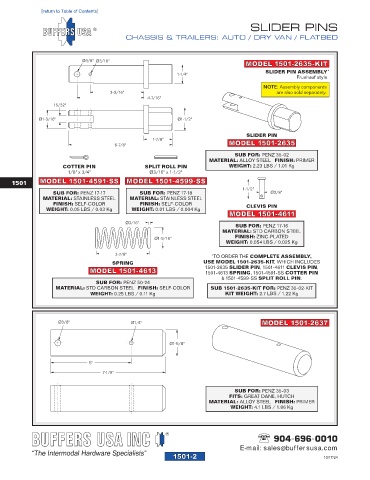

Page 284 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1501-02
[return to Table of Contents]
SLIDER PINS

CHASSIS & TRAILERS: AUTO / DRY VAN / FLATBED

Ø3/8" Ø3/16" MODEL 1501-2635-KIT
SLIDER PIN ASSEMBLY *
1-1/4"
Fruehauf style
NOTE: Assembly components
3-9/16" are also sold separately.
4-7/16"
15/32"

Ø1-3/16" Ø1-1/2"

SLIDER PIN
1-7/8"
6-7/8" MODEL 1501-2635
SUB FOR: PENZ 35-02
MATERIAL: ALLOY STEEL FINISH: PRIMER
COTTER PIN SPLIT ROLL PIN WEIGHT: 2.23 LBS / 1.01 Kg
1/8" x 3/4" Ø3/16" x 1-1/2"
1501 MODEL 1501-4591-SS MODEL 1501-4599-SS
1-1/2"
SUB FOR: PENZ 17-17 SUB FOR: PENZ 17-18 Ø3/8"
MATERIAL: STAINLESS STEEL MATERIAL: STAINLESS STEEL
FINISH: SELF-COLOR FINISH: SELF-COLOR CLEVIS PIN
WEIGHT: 0.05 LBS / 0.03 Kg WEIGHT: 0.01 LBS / 0.004 Kg
MODEL 1501-4611
Ø3/16"
SUB FOR: PENZ 17-16
MATERIAL: STD CARBON STEEL
Ø1-9/16" FINISH: ZINC-PLATED
WEIGHT: 0.054 LBS / 0.025 Kg
3-7/8" * TO ORDER THE COMPLETE ASSEMBLY,
SPRING USE MODEL 1501-2635-KIT, WHICH INCLUDES
MODEL 1501-4613 1501-2635 SLIDER PIN, 1501-4611 CLEVIS PIN,
1501-4613 SPRING, 1501-4591-SS COTTER PIN
& 1501-4599-SS SPLIT ROLL PIN.
SUB FOR: PENZ 50-24
MATERIAL: STD CARBON STEEL FINISH: SELF-COLOR SUB 1501-2635-KIT FOR: PENZ 35-02-KIT
WEIGHT: 0.25 LBS / 0.11 Kg KIT WEIGHT: 2.7 LBS / 1.22 Kg

Ø3/8" Ø1/4" MODEL 1501-2637

Ø1-5/8"

5"
7-1/8"

SUB FOR: PENZ 35-03
FITS: GREAT DANE, HUTCH
MATERIAL: ALLOY STEEL FINISH: PRIMER
WEIGHT: 4.1 LBS / 1.86 Kg
