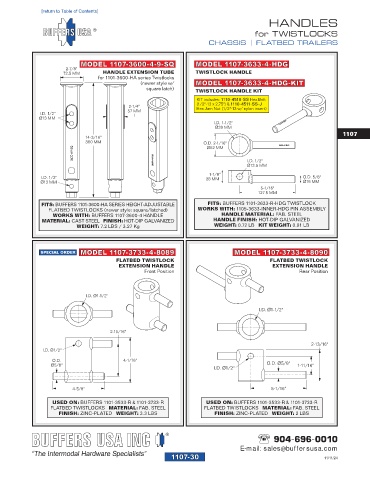

Page 231 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1107-30
[return to Table of Contents]
HANDLES
for TWISTLOCKS
CHASSIS | FLATBED TRAILERS

MODEL 1107-3600-4-9-SQ MODEL 1107-3633-4-HDG
2-7/8"
72.5 MM HANDLE EXTENSION TUBE TWISTLOCK HANDLE
for 1101-3600-HA series Twistlocks
(newer style w/ MODEL 1107-3633-4-HDG-KIT
square latch) TWISTLOCK HANDLE KIT
KIT includes: 1110-4510-SS Hex Bolt
(1/2"-13 x 2.75") & 1110-4511-SS-J
2-1/4" Hex Jam Nut (1/2"-13 w/ nylon insert)
57 MM
I.D. 1/2"
Ø13 MM
I.D. 1-1/2"
Ø39 MM
1107
14-3/16"
360 MM O.D. 2-1/16"
Ø52 MM
I.D. 1/2"
Ø13.5 MM
1-1/8"
I.D. 1/2" 28 MM O.D. 5/8"
Ø13 MM Ø16 MM
5-1/16"
127.5 MM

FITS: BUFFERS 1101-3600-HA SERIES HEIGHT-ADJUSTABLE FITS: BUFFERS 1101-3633-R-HDG TWISTLOCK
FLATBED TWISTLOCKS (newer style: square/latched) WORKS WITH: 1105-3633-INNER-HDG PIN ASSEMBLY
WORKS WITH: BUFFERS 1107-3600-4 HANDLE HANDLE MATERIAL: FAB. STEEL
MATERIAL: CAST STEEL FINISH: HOT-DIP GALVANIZED HANDLE FINISH: HOT-DIP GALVANIZED
WEIGHT: 7.2 LBS / 3.27 Kg WEIGHT: 0.72 LB KIT WEIGHT: 0.91 LB

SPECIAL ORDER MODEL 1107-3733-4-8089 MODEL 1107-3733-4-8090
FLATBED TWISTLOCK FLATBED TWISTLOCK
EXTENSION HANDLE EXTENSION HANDLE
Front Position Rear Position

I.D. Ø1-1/2"

I.D. Ø1-1/2"

2-15/16"
2-13/16"
I.D. Ø1/2"
O.D. 4-1/16"
Ø5/8" O.D. Ø5/8" 1-11/16"
I.D. Ø1/2"

4-5/8" 5-1/16"
USED ON: BUFFERS 1101-3533-R & 1101-3733-R USED ON: BUFFERS 1101-3533-R & 1101-3733-R
FLATBED TWISTLOCKS MATERIAL: FAB. STEEL FLATBED TWISTLOCKS MATERIAL: FAB. STEEL
FINISH: ZINC-PLATED WEIGHT: 3.3 LBS FINISH: ZINC-PLATED WEIGHT: 2 LBS

904-696-0010
E-mail: sales@buffersusa.com
1107-30 11/11/24
