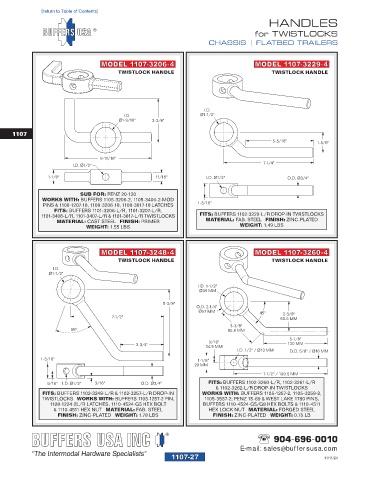

Page 228 - Buffers USA 2024 Chassis Hardware Catalog FlipBook

1107-27
[return to Table of Contents]
HANDLES
for TWISTLOCKS
CHASSIS | FLATBED TRAILERS

MODEL 1107-3206-4 MODEL 1107-3229-4
TWISTLOCK HANDLE TWISTLOCK HANDLE

I.D.
I.D. Ø1-1/2"
Ø1-9/16" 3-3/8"

1107
5-5/16" 1-5/8"

6-11/16"
I.D. Ø1/2" 7-1/4"
1-1/8" 11/16" I.D. Ø1/2" O.D. Ø3/4"

SUB FOR: PENZ 20-130
WORKS WITH: BUFFERS 1105-3206-2, 1105-3406-2-MOD
PINS & 1108-1207-18, 1108-3206-18, 1108-3817-18 LATCHES 1-3/16"
FITS: BUFFERS 1101-3206-L/R, 1101-3207-L/R,
1101-3406-L/R, 1101-3407-L/R & 1101-3817-L/R TWISTLOCKS FITS: BUFFERS 1102-3229-L/R DROP-IN TWISTLOCKS
MATERIAL: CAST STEEL FINISH: PRIMER MATERIAL: FAB. STEEL FINISH: ZINC-PLATED
WEIGHT: 1.55 LBS WEIGHT: 1.49 LBS

MODEL 1107-3248-4 MODEL 1107-3260-4
TWISTLOCK HANDLE TWISTLOCK HANDLE
I.D.
Ø1-1/2"
I.D. 1-1/2"
Ø39 MM

5-3/8"
O.D. 2-1/4"
Ø57 MM 45°
2-3/8"
7-1/2" 60.5 MM
3-3/8"
55º 85.6 MM
5-1/8"
9/16"
3-3/4" 14.5 MM 130 MM
I.D. 1/2" / Ø13 MM O.D. 5/8" / Ø16 MM
1-3/16" 1-1/8"
29 MM
7-1/2" / 190.5 MM
9/16" I.D. Ø1/2" 3/16" O.D. Ø3/4" FITS: BUFFERS 1102-3260-L/R, 1102-3261-L/R
& 1102-3262-L/R DROP-IN TWISTLOCKS
FITS: BUFFERS 1102-3248-L/R & 1102-3257-L/R DROP-IN WORKS WITH: BUFFERS 1105-1257-2, 1105-3259-2,
TWISTLOCKS WORKS WITH: BUFFERS 1105-1257-2 PIN, 1105-3557-2; PENZ 15-69 & WEST LAKE 1780 PINS,
1108-1224-2L/R LATCHES, 1110-4524-G5 HEX BOLT BUFFERS 1110-4524-G5/G8 HEX BOLTS & 1110-4511
& 1110-4511 HEX NUT MATERIAL: FAB. STEEL HEX LOCK NUT MATERIAL: FORGED STEEL
FINISH: ZINC-PLATED WEIGHT: 1.78 LBS FINISH: ZINC-PLATED WEIGHT: 0.75 LB

904-696-0010
E-mail: sales@buffersusa.com
1107-27 11/11/24
