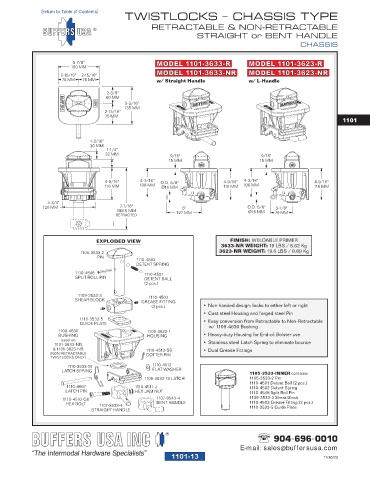

Page 89 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1101-13
[return to Table of Contents]
TWISTLOCKS – CHASSIS TYPE
RETRACTABLE & NON-RETRACTABLE
STRAIGHT or BENT HANDLE
CHASSIS

5-7/8" MODEL 1101-3633-R MODEL 1101-3623-R
150 MM
2-15/16" 2-15/16" MODEL 1101-3633-NR MODEL 1101-3623-NR
75 MM 75 MM w/ Straight Handle w/ L-Handle

2-3/8"
60 MM
5-5/16"
135 MM
2-15/16"
75 MM
1101

1-3/16"
30 MM
1-1/4"
32 MM 9/16" 9/16"
15 MM 15 MM

4-9/16" 4-3/16" O.D. 5/8" 4-9/16" 4-3/16" 4-9/16"
116 MM 106 MM Ø16 MM 116 MM 106 MM 116 MM

4-3/4"
120 MM 7-7/16" 5" O.D. 5/8" 3-1/8"
188.5 MM 127 MM Ø16 MM 79 MM
RETRACTED

EXPLODED VIEW FINISH: WELDABLE PRIMER
3633-NR WEIGHT: 19 LBS / 8.62 Kg
1105-3533-2 3623-NR WEIGHT: 19.6 LBS / 8.89 Kg
PIN
1110-4502
DETENT SPRING
1110-4548 1110-4501
SPLIT ROLL PIN DETENT BALL
(2 pcs.)
1109-3533-3 1110-4503
SHEAR BLOCK GREASE FITTING
(2 pcs.) • Non-handed design; locks to either left or right
• Cast steel Housing and forged steel Pin
1110-3533-5 • Easy conversion from Retractable to Non-Retractable
GUIDE PLATE w/ 1109-4630 Bushing
1109-4630 1109-3633-1
BUSHING HOUSING • Heavy-duty Housing for End-of-Bolster use
used on
1101-3633-NR • Stainless steel Latch Spring to eliminate bounce
& 1101-3623-NR 1110-4513-SS • Dual Grease Fittings
(NON-RETRACTABLE COTTER PIN
TWISTLOCKS ONLY)
1110-3533-19 1110-4512
LATCH SPRING FLAT WASHER
1105-3533-INNER contains:
1108-3633-18 LATCH 1105-3533-2 Pin
1110-4501 Detent Ball (2 pcs.)
1110-4667 1110-4511-J 1110-4502 Detent Spring
LATCH PIN HEX JAM NUT 1110-4548 Split Roll Pin
1110-4510-G8 1107-8543-4 1109-3533-3 Shear Block
HEX BOLT 1107-8533-4 BENT HANDLE 1110-4503 Grease Fitting (2 pcs.)
1110-3533-5 Guide Plate
STRAIGHT HANDLE

904-696-0010
