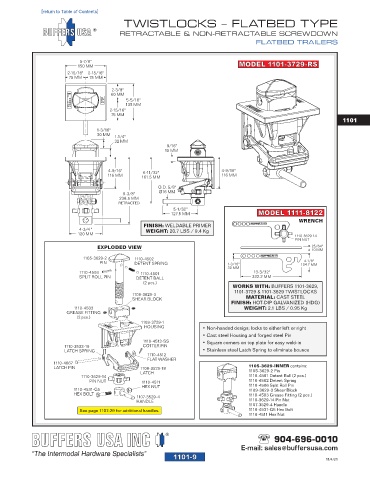

TWISTLOCKS – FLATBED TYPE
RETRACTABLE & NON-RETRACTABLE SCREWDOWN
FLATBED TRAILERS

5-7/8" MODEL 1101-3729-RS
150 MM
2-15/16" 2-15/16"
75 MM 75 MM

2-3/8"
60 MM
5-5/16"
135 MM
2-15/16"
75 MM
1101
1-3/16"
30 MM
1-1/4"
32 MM
9/16"
15 MM

4-9/16" 6-11/32" 4-9/16"
116 MM 116 MM
161.5 MM
O.D. 5/8"
9-3/8" Ø16 MM
238.5 MM
RETRACTED
5-1/32"
127.5 MM MODEL 1111-8122
WRENCH
FINISH: WELDABLE PRIMER
4-3/4 " WEIGHT: 20.7 LBS / 9.4 Kg
120 MM 1110-3629-14
PIN NUT
EXPLODED VIEW 25/64"
10 MM
1105-3629-2 1110-4502 4-1/8"
PIN DETENT SPRING 1-3/16" 104.7 MM
30 MM
1110-4506 1110-4501 13-3/32"
SPLIT ROLL PIN DETENT BALL 332.2 MM
(2 pcs.)
WORKS WITH: BUFFERS 1101-3629,
1101-3729 & 1101-3829 TWISTLOCKS
1109-3629-3 MATERIAL: CAST STEEL
SHEAR BLOCK
FINISH: HOT-DIP GALVANIZED (HDG)
1110-4503 WEIGHT: 2.1 LBS / 0.95 Kg
GREASE FITTING
(2 pcs.)
1109-3729-1
HOUSING • Non-handed design; locks to either left or right
• Cast steel Housing and forged steel Pin
1110-4513-SS • Square corners on top plate for easy weld-in
1110-3533-19 COTTER PIN
LATCH SPRING • Stainless steel Latch Spring to eliminate bounce
1110-4512
FLAT WASHER
1110-4667
LATCH PIN 1108-3529-18 1105-3629-INNER contains:
LATCH 1105-3629-2 Pin
1110-3629-14 1110-4501 Detent Ball (2 pcs.)
PIN NUT 1110-4511 1110-4502 Detent Spring
HEX NUT 1110-4506 Split Roll Pin
1110-4531-G5 1109-3629-3 Shear Block
HEX BOLT 1110-4503 Grease Fitting (2 pcs.)
1107-3529-4
HANDLE 1110-3629-14 Pin Nut
1107-3529-4 Handle
See page 1107-29 for additional handles. 1110-4531-G5 Hex Bolt
1110-4511 Hex Nut
