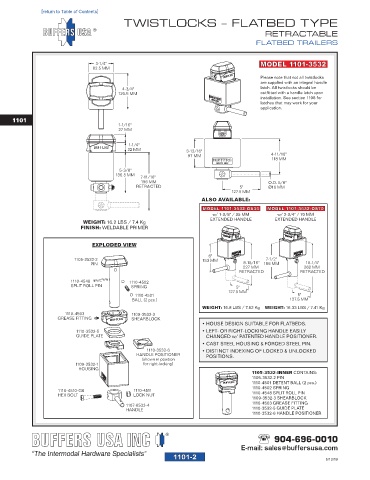

Page 78 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1101-02
[return to Table of Contents]
TWISTLOCKS – FLATBED TYPE
RETRACTABLE
FLATBED TRAILERS

3-1/4" MODEL 1101-3532
82.5 MM
Please note that not all twistlocks
are supplied with an integral handle
4-3/4" latch. All twistlocks should be
120.5 MM outfitted with a handle latch upon
installation. See section 1108 for
latches that may work for your
application.
1101
1-1/16"
27 MM

1-1/4"
32 MM 3-13/16"
97 MM 4-11/16"
118 MM
5-3/8"
136.5 MM 7-11/16"
196 MM O.D. 5/8"
RETRACTED 5" Ø16 MM
127.5 MM
ALSO AVAILABLE:
MODEL 1101-3532-OS35 MODEL 1101-3532-OS70
w/ 1-3/8" / 35 MM w/ 2-3/4" / 70 MM
EXTENDED HANDLE EXTENDED HANDLE
WEIGHT: 16.2 LBS / 7.4 Kg
FINISH: WELDABLE PRIMER

EXPLODED VIEW
6"
1105-3532-2 153 MM 7-1/2"
PIN 8-15/16" 188 MM 10-1/4"
227 MM 262 MM
RETRACTED RETRACTED
1110-4548 1110-4502
SPLIT ROLL PIN SPRING 5"
127.5 MM
1110-4501 5"
BALL (2 pcs.) 127.5 MM
WEIGHT: 16.8 LBS / 7.62 Kg WEIGHT: 16.33 LBS / 7.41 Kg
1110-4503 1109-3532-3
GREASE FITTING SHEARBLOCK
• HOUSE DESIGN SUITABLE FOR FLATBEDS.
1110-3532-5 • LEFT- OR RIGHT-LOCKING HANDLE EASILY
GUIDE PLATE CHANGED w/ PATENTED HANDLE POSITIONER.
• CAST STEEL HOUSING & FORGED STEEL PIN.
1110-3532-6 • DISTINCT INDEXING OF LOCKED & UNLOCKED
HANDLE POSITIONER POSITIONS.
(shown in position
1109-3532-1 for right-locking)
HOUSING
1105-3532-INNER CONTAINS:
1105-3532-2 PIN
1110-4501 DETENT BALL (2 pcs.)
1110-4502 SPRING
1110-4510-G8 1110-4511
HEX BOLT LOCK NUT 1110-4548 SPLIT ROLL PIN
1109-3532-3 SHEARBLOCK
1107-8533-4 1110-4503 GREASE FITTING
HANDLE 1110-3532-5 GUIDE PLATE
1110-3532-6 HANDLE POSITIONER
