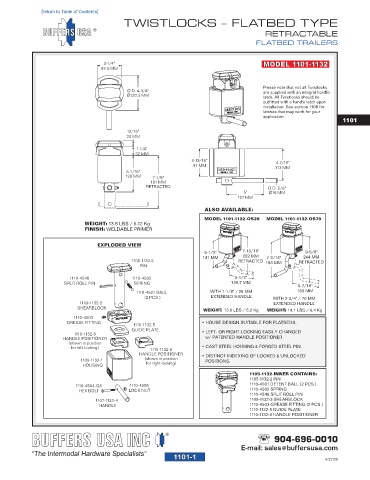

Page 77 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1101-01
[return to Table of Contents]
TWISTLOCKS – FLATBED TYPE
RETRACTABLE
FLATBED TRAILERS

3-1/4" MODEL 1101-1132
82.5 MM

Please note that not all Twistlocks
O.D. 4-3/4" are supplied with an integral handle
Ø120.5 MM latch. All Twistlocks should be
outfitted with a handle latch upon
installation. See section 1108 for
latches that may work for your
application.
1101
13/16"
20 MM
1-1/4"
32 MM
3-13/16" 4-7/16"
97 MM 113 MM
5-1/16"
128 MM 7-1/8"
181 MM
RETRACTED O.D. 5/8"
5" Ø16 MM
127 MM

ALSO AVAILABLE:
MODEL 1101-1132-OS28 MODEL 1101-1132-OS70
WEIGHT: 13.5 LBS / 6.12 Kg
FINISH: WELDABLE PRIMER

EXPLODED VIEW
5-1/2" 7-15/16" 9-5/8"
141 MM 202 MM 7-3/16" 244 MM
1105-1132-2 RETRACTED 183 MM RETRACTED
PIN
1110-4548 1110-4502 5-1/2"
SPLIT ROLL PIN SPRING 139.7 MM
6-7/16"
1110-4501 BALL WITH 1-1/8" / 28 MM 163 MM
(2 PCS.) EXTENDED HANDLE WITH 2-3/4" / 70 MM
1109-1132-3 EXTENDED HANDLE
SHEARBLOCK
WEIGHT: 13.6 LBS / 6.2 Kg WEIGHT: 14.1 LBS / 6.4 Kg
1110-4503
GREASE FITTING 1110-1132-5 • HOUSE DESIGN SUITABLE FOR FLATBEDS.
GUIDE PLATE
1110-1132-6 • LEFT- OR RIGHT-LOCKING EASILY CHANGED
HANDLE POSITIONER w/ PATENTED HANDLE POSITIONER.
(shown in position
for left-locking) 1110-1132-6 • CAST STEEL HOUSING & FORGED STEEL PIN.
HANDLE POSITIONER • DISTINCT INDEXING OF LOCKED & UNLOCKED
1109-1132-1 (shown in position POSITIONS.
for right-locking)
HOUSING
1105-1132-INNER CONTAINS:
1105-1132-2 PIN
1110-4504-G5 1110-4505 1110-4501 DETENT BALL (2 PCS.)
HEX BOLT LOCK NUT 1110-4502 SPRING
1110-4548 SPLIT ROLL PIN
1107-1133-4 1109-1132-3 SHEARBLOCK
HANDLE 1110-4503 GREASE FITTING (2 PCS.)
1110-1132-5 GUIDE PLATE
1110-1132-6 HANDLE POSITIONER

904-696-0010
E-mail: sales@buffersusa.com
1101-1 4/22/19
