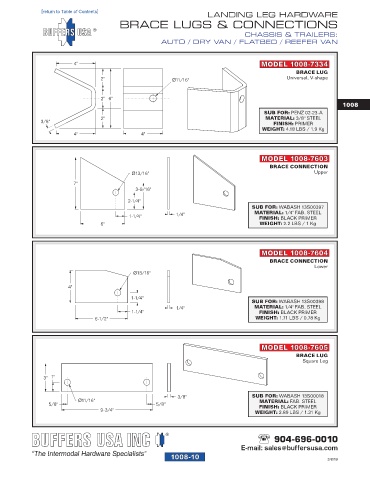

Page 71 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1008-10
[return to Table of Contents]
LANDING LEG HARDWARE
BRACE LUGS & CONNECTIONS
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

4" MODEL 1008-7334
BRACE LUG
2" Ø11/16" Universal, V-shape

2" 6"
1008
SUB FOR: PENZ 02-23-A
2" MATERIAL: 3/8" STEEL
3/8" FINISH: PRIMER
WEIGHT: 4.18 LBS / 1.9 Kg
4" 4"

MODEL 1008-7603
BRACE CONNECTION
Ø13/16" Upper
7"
3-9/16"

2-1/4"
SUB FOR: WABASH 13S00397
1-1/4" 1/4" MATERIAL: 1/4" FAB. STEEL
FINISH: BLACK PRIMER
6" WEIGHT: 2.2 LBS / 1 Kg

MODEL 1008-7604
BRACE CONNECTION
Lower
Ø13/16"
4"

1-1/4"
SUB FOR: WABASH 13S00398
1/4" MATERIAL: 1/4" FAB. STEEL
1-1/4" FINISH: BLACK PRIMER
6-1/2" WEIGHT: 1.71 LBS / 0.78 Kg

MODEL 1008-7605
BRACE LUG
Square Leg

3" 1"

3/8" SUB FOR: WABASH 13S00018
Ø11/16" MATERIAL: FAB. STEEL
5/8" 5/8" FINISH: BLACK PRIMER
9-3/4" WEIGHT: 2.89 LBS / 1.31 Kg

904-696-0010
E-mail: sales@buffersusa.com
1008-10 3/8/19
