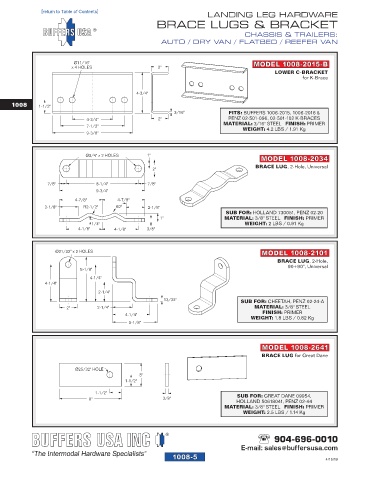

Page 66 - Buffers USA 2024 Trailer Hardware Catalog FlipBook

1008-05
[return to Table of Contents]
LANDING LEG HARDWARE
BRACE LUGS & BRACKET
CHASSIS & TRAILERS:
AUTO / DRY VAN / FLATBED / REEFER VAN

Ø11/16" MODEL 1008-2015-B
x 4 HOLES 2"
LOWER C-BRACKET
for K-Brace

4-3/4"
1008 1-1/2"
3/16" FITS: BUFFERS 1006-2015, 1006-2016 &
4-3/4" 2" PENZ 02-501-096, 02-501-102 K-BRACES
7-1/2" MATERIAL: 3/16" STEEL FINISH: PRIMER
WEIGHT: 4.2 LBS / 1.91 Kg
9-3/8"

Ø3/4" x 2 HOLES 1"
MODEL 1008-2034
BRACE LUG, 2-Hole, Universal
2"
7/8" 8-1/4" 7/8"
9-3/4"
4-7/8" 4-7/8"
2-1/8" R2-1/2" 60º 2-1/8"
SUB FOR: HOLLAND 730051, PENZ 02-20
1" MATERIAL: 3/8" STEEL FINISH: PRIMER
1/4" WEIGHT: 2 LBS / 0.91 Kg
4-1/8" 4-1/8" 3/8"

Ø21/32" x 2 HOLES MODEL 1008-2101
BRACE LUG, 2-Hole,
90+90°, Universal
5-1/8"
4-1/4"
4-1/4"
2-1/4"
13/32" SUB FOR: CHEETAH, PENZ 02-24-A
2" 2-1/4" MATERIAL: 3/8" STEEL
4-1/4" FINISH: PRIMER
WEIGHT: 1.8 LBS / 0.82 Kg
5-1/8"

MODEL 1008-2641
BRACE LUG for Great Dane

Ø25/32" HOLE
3"
1-1/2"
1-1/2" SUB FOR: GREAT DANE 09954,
8" 3/8" HOLLAND 50618041, PENZ 02-44
MATERIAL: 3/8" STEEL FINISH: PRIMER
WEIGHT: 2.5 LBS / 1.14 Kg

904-696-0010
E-mail: sales@buffersusa.com
1008-5 4/15/19
