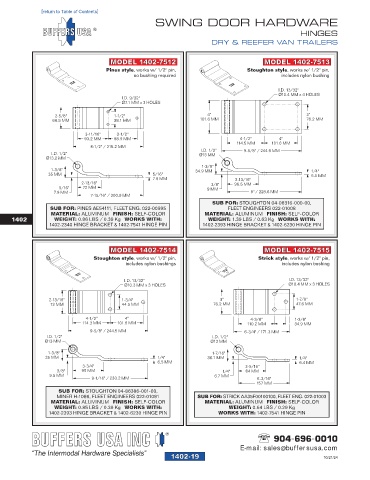

SWING DOOR HARDWARE

HINGES
DRY & REEFER VAN TRAILERS

MODEL 1402-7512 MODEL 1402-7513
Pines style, works w/ 1/2" pin, Stoughton style, works w/ 1/2" pin,
no bushing required includes nylon bushing

I.D. 13/32"
Ø10.4 MM x 4 HOLES
I.D. 9/32"
Ø7.1 MM x 3 HOLES
2-5/8" 1-1/2" 4" 3"
66.5 MM 38.1 MM 101.6 MM 76.2 MM

3-11/16" 3-1/2"
93.2 MM 88.9 MM 4-1/2" 4"
114.5 MM 101.6 MM
8-1/2" / 215.2 MM
I.D. 1/2" 9-5/8" / 244.6 MM
I.D. 1/2" Ø13 MM
Ø13.2 MM
1-3/8"
1-3/8" 34.9 MM 1/4"
35 MM 5/16" 6.5 MM
7.9 MM 3-13/16"
2-13/16" 3/8" 96.5 MM
5/16" 72 MM 9 MM
7.9 MM 9" / 228.6 MM
7-15/16" / 200.9 MM
SUB FOR: STOUGHTON 04-08316-000-00,
SUB FOR: PINES AE54111, FLEET ENG. 022-00995 FLEET ENGINEERS 022-01008
MATERIAL: ALUMINUM FINISH: SELF-COLOR MATERIAL: ALUMINUM FINISH: SELF-COLOR
1402 WEIGHT: 0.86 LBS / 0.39 Kg WORKS WITH: WEIGHT: 1.39 LBS / 0.63 Kg WORKS WITH:
1402-2340 HINGE BRACKET & 1402-7541 HINGE PIN 1402-2393 HINGE BRACKET & 1402-6230 HINGE PIN

MODEL 1402-7514 MODEL 1402-7515
Stoughton style, works w/ 1/2" pin, Strick style, works w/ 1/2" pin,
includes nylon bushings includes nylon bushing

I.D. 13/32" I.D. 13/32"
Ø10.3 MM x 3 HOLES Ø10.4 MM x 3 HOLES

2-13/16" 1-3/4" 3" 1-7/8"
72 MM 44.5 MM 76.2 MM 47.6 MM

4-1/2" 4" 4-3/8" 1-3/8"
114.3 MM 101.6 MM 110.2 MM 34.9 MM
9-5/8" / 244.5 MM 6-3/4" / 171.3 MM
I.D. 1/2" I.D. 1/2"
Ø13 MM Ø13 MM
1-3/8" 1-7/16"
35 MM 1/4" 36.1 MM 1/4"
6.5 MM 6.4 MM
3-3/4" 3-5/16"
3/8" 95 MM 1/4" 84 MM
9.5 MM 6.7 MM
9-1/16" / 230.2 MM 6-3/16"
157 MM
SUB FOR: STOUGHTON 04-86386-001-00,
MINER H-1086, FLEET ENGINEERS 022-01081 SUB FOR: STRICK AA35F00100100, FLEET ENG. 022-01003
MATERIAL: ALUMINUM FINISH: SELF-COLOR MATERIAL: ALUMINUM FINISH: SELF-COLOR
WEIGHT: 0.85 LBS / 0.39 Kg WORKS WITH: WEIGHT: 0.64 LBS / 0.29 Kg
1402-2393 HINGE BRACKET & 1402-6230 HINGE PIN WORKS WITH: 1402-7541 HINGE PIN
