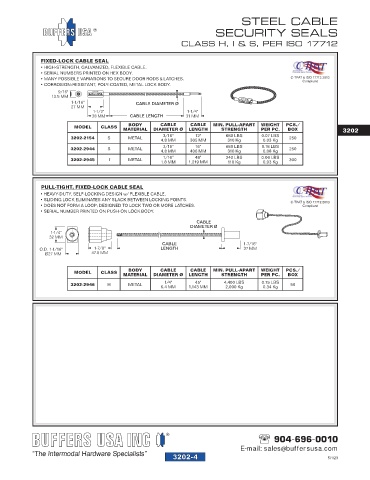

Page 59 - Buffers USA 2024 Lashing Gear & Marine Hardware Catalog FlipBook

3202-04
STEEL CABLE

SECURITY SEALS
CLASS H, I & S, PER ISO 17712

FIXED-LOCK CABLE SEAL
• HIGH-STRENGTH, GALVANIZED, FLEXIBLE CABLE.
• SERIAL NUMBERS PRINTED ON HEX BODY.
• MANY POSSIBLE VARIATIONS TO SECURE DOOR RODS & LATCHES. C-TPAT & ISO 17712:2013
Compliant
• CORROSION-RESISTANT, POLY-COATED, METAL LOCK BODY.
9/16" Buffers USA
012345
13.5 MM
012345
1-1/16" CABLE DIAMETER Ø Buffers USA
27 MM
1-1/2" 1-1/4"
38 MM CABLE LENGTH 31 MM
BODY CABLE CABLE MIN. PULL-APART WEIGHT PCS./
MODEL CLASS
MATERIAL DIAMETER Ø LENGTH STRENGTH PER PC. BOX 3202
3/16" 12" 680 LBS 0.07 LBS
3202-2154 S METAL 250
4.8 MM 305 MM 310 Kg 0.03 Kg
3/16" 16" 680 LBS 0.18 LBS
3202-2944 S METAL 250
4.8 MM 406 MM 310 Kg 0.08 Kg
1/16" 48" 240 LBS 0.06 LBS
3202-2945 I METAL 300
1.8 MM 1,219 MM 110 Kg 0.03 Kg
PULL-TIGHT, FIXED-LOCK CABLE SEAL
• HEAVY-DUTY, SELF-LOCKING DESIGN w/ FLEXIBLE CABLE.
• SLIDING LOCK ELIMINATES ANY SLACK BETWEEN LOCKING POINTS. C-TPAT & ISO 17712:2013
• DOES NOT FORM A LOOP; DESIGNED TO LOCK TWO OR MORE LATCHES. Compliant
• SERIAL NUMBER PRINTED ON PUSH-ON LOCK BODY.
CABLE
DIAMETER Ø
1-1/4"
32 MM
CABLE 1-7/16"
O.D. 1-1/16" 1-7/8" LENGTH 37 MM
Ø27 MM 47.5 MM

BODY CABLE CABLE MIN. PULL-APART WEIGHT PCS./
MODEL CLASS
MATERIAL DIAMETER Ø LENGTH STRENGTH PER PC. BOX
1/4" 45" 4,400 LBS 0.75 LBS
3202-2946 H METAL 50
6.4 MM 1,143 MM 2,000 Kg 0.34 Kg

904-696-0010
E-mail: sales@buffersusa.com
3202-4 5/1/23
