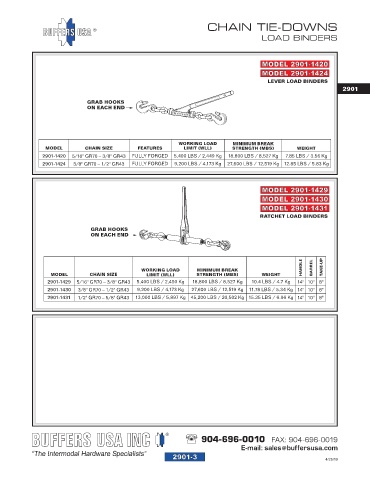

Page 19 - Buffers USA 2024 Lashing Gear & Marine Hardware Catalog FlipBook

2901-03

CHAIN TIE-DOWNS
®
LOAD BINDERS

MODEL 2901-1420
MODEL 2901-1424
LEVER LOAD BINDERS
2901
GRAB HOOKS
ON EACH END

WORKING LOAD MINIMUM BREAK
MODEL CHAIN SIZE FEATURES LIMIT (WLL) STRENGTH (MBS) WEIGHT
2901-1420 5/16" GR70 – 3/8" GR43 FULLY FORGED 5,400 LBS / 2,449 Kg 18,800 LBS / 8,527 Kg 7.85 LBS / 3.56 Kg
2901-1424 3/8" GR70 – 1/2" GR43 FULLY FORGED 9,200 LBS / 4,173 Kg 27,600 LBS / 12,519 Kg 12.85 LBS / 5.83 Kg

MODEL 2901-1429
MODEL 2901-1430
MODEL 2901-1431
RATCHET LOAD BINDERS

GRAB HOOKS
ON EACH END

WORKING LOAD MINIMUM BREAK HANDLE BARREL TAKE-UP
MODEL CHAIN SIZE LIMIT (WLL) STRENGTH (MBS) WEIGHT
2901-1429 5/16" GR70 – 3/8" GR43 5,400 LBS / 2,450 Kg 18,800 LBS / 8,527 Kg 10.4 LBS / 4.7 Kg 14" 10" 8"
2901-1430 3/8" GR70 – 1/2" GR43 9,200 LBS / 4,173 Kg 27,600 LBS / 12,519 Kg 11.78 LBS / 5.34 Kg 14" 10" 8"
2901-1431 1/2" GR70 – 5/8" GR43 13,000 LBS / 5,897 Kg 45,200 LBS / 20,502 Kg 15.35 LBS / 6.96 Kg 14" 10" 8"

®
904-696-0010 FAX: 904-696-0019
E-mail: sales@buffersusa.com
2901-3 4/25/19
