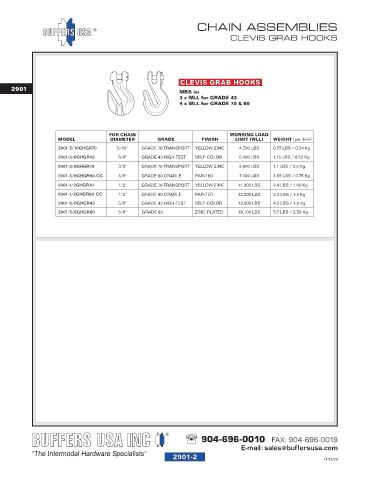

Page 18 - Buffers USA 2024 Lashing Gear & Marine Hardware Catalog FlipBook

2901-02

CHAIN ASSEMBLIES

CLEVIS GRAB HOOKS

CLEVIS GRAB HOOKS
2901
MBS is:
3 x WLL for GRADE 43
4 x WLL for GRADE 70 & 80

FOR CHAIN WORKING LOAD
MODEL DIAMETER GRADE FINISH LIMIT (WLL) WEIGHT (per item)
2901-5/16GHGR70 5/16" GRADE 70 TRANSPORT YELLOW ZINC 4,700 LBS 0.75 LBS / 0.34 Kg
2901-3/8GHGR43 3/8" GRADE 43 HIGH-TEST SELF-COLOR 5,400 LBS 1.15 LBS / 0.52 Kg
2901-3/8GHGR70 3/8" GRADE 70 TRANSPORT YELLOW ZINC 6,600 LBS 1.1 LBS / 0.5 Kg
2901-3/8GHGR80-CC 3/8" GRADE 80 CRADLE PAINTED 7,100 LBS 1.65 LBS / 0.75 Kg
2901-1/2GHGR70 1/2" GRADE 70 TRANSPORT YELLOW ZINC 11,300 LBS 2.4 LBS / 1.09 Kg
2901-1/2GHGR80-CC 1/2" GRADE 80 CRADLE PAINTED 12,000 LBS 3.3 LBS / 1.5 Kg
2901-5/8GHGR43 5/8" GRADE 43 HIGH-TEST SELF-COLOR 13,000 LBS 4.2 LBS / 1.9 Kg
2901-5/8GHGR80 5/8" GRADE 80 ZINC-PLATED 18,100 LBS 5.7 LBS / 2.58 Kg

904-696-0010 FAX: 904-696-0019
E-mail: sales@buffersusa.com
2901-2 11/13/20
