5005-03
[return to Table of Contents]

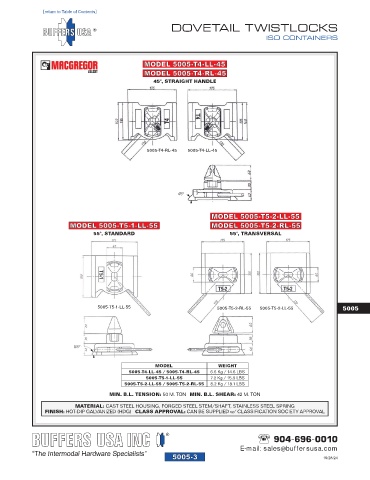

DOVETAIL TWISTLOCKS

ISO CONTAINERS

MODEL 5005-T4-LL-45
MODEL 5005-T4-RL-45
45°, STRAIGHT HANDLE

5005-T4-RL-45 5005-T4-LL-45

45º

MODEL 5005-T5-2-LL-55
MODEL 5005-T5-1-LL-55 MODEL 5005-T5-2-RL-55
55°, STANDARD 55°, TRANSVERSAL

5005-T5-1-LL-55 5005-T5-2-RL-55 5005-T5-2-LL-55 5005

55º

MODEL WEIGHT
5005-T4-LL-45 / 5005-T4-RL-45 6.6 Kg / 14.6 LBS
5005-T5-1-LL-55 7.2 Kg / 15.9 LBS
5005-T5-2-LL-55 / 5005-T5-2-RL-55 8.2 Kg / 18.1 LBS
MIN. B.L. TENSION: 50 M. TON MIN. B.L. SHEAR: 42 M. TON
MATERIAL: CAST STEEL HOUSING, FORGED STEEL STEM/SHAFT, STAINLESS STEEL SPRING
FINISH: HOT-DIP GALVANIZED (HDG) CLASS APPROVAL: CAN BE SUPPLIED w/ CLASSIFICATION SOCIETY APPROVAL

904-696-0010
E-mail: sales@buffersusa.com
5005-3 10/28/24
