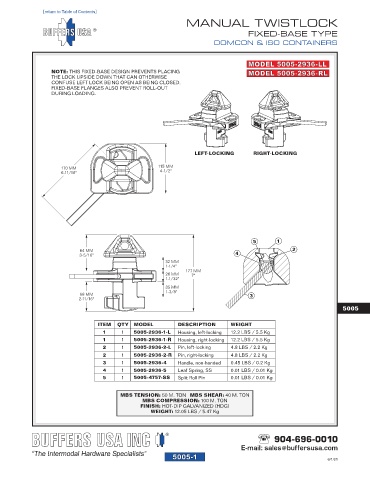

Page 297 - Buffers USA 2024 Container Hardware Catalog FlipBook

5005-01
[return to Table of Contents]
MANUAL TWISTLOCK
FIXED-BASE TYPE
DOMCON & ISO CONTAINERS

MODEL 5005-2936-LL
NOTE: THIS FIXED-BASE DESIGN PREVENTS PLACING MODEL 5005-2936-RL
THE LOCK UPSIDE DOWN THAT CAN OTHERWISE
CONFUSE LEFT LOCK BEING OPEN AS BEING CLOSED.
FIXED-BASE FLANGES ALSO PREVENT ROLL-OUT
DURING LOADING.

LEFT-LOCKING RIGHT-LOCKING

170 MM 115 MM
6-11/16" 4-1/2"

5 1
84 MM 2
3-5/16" 4
32 MM
1-1/4"
177 MM
26 MM 7"
1-1/32"
35 MM
1-3/8"
68 MM 3
2-11/16"
5005

ITEM QTY MODEL DESCRIPTION WEIGHT
1 1 5005-2936-1-L Housing, left-locking 12.2 LBS / 5.5 Kg
1 1 5005-2936-1-R Housing, right-locking 12.2 LBS / 5.5 Kg
2 1 5005-2936-2-L Pin, left-locking 4.8 LBS / 2.2 Kg
2 1 5005-2936-2-R Pin, right-locking 4.8 LBS / 2.2 Kg
3 1 5005-2936-4 Handle, non-handed 0.45 LBS / 0.2 Kg
4 1 5005-2936-5 Leaf Spring, SS 0.01 LBS / 0.01 Kg
5 1 5005-4757-SS Split Roll Pin 0.01 LBS / 0.01 Kg

MBS TENSION: 50 M. TON MBS SHEAR: 40 M. TON
MBS COMPRESSION: 100 M. TON
FINISH: HOT-DIP GALVANIZED (HDG)
WEIGHT: 12.05 LBS / 5.47 Kg

904-696-0010
E-mail: sales@buffersusa.com
5005-1 6/1/21
