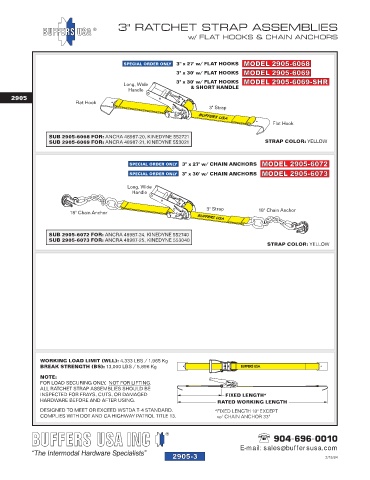

Page 32 - Buffers USA 2024 Lashing Gear & Marine Hardware Catalog FlipBook
P. 32
2905-03
3" RATCHET STRAP ASSEMBLIES
w/ FLAT HOOKS & CHAIN ANCHORS
SPECIAL ORDER ONLY 3" x 27' w/ FLAT HOOKS MODEL 2905-6068
3" x 30' w/ FLAT HOOKS MODEL 2905-6069
3" x 30' w/ FLAT HOOKS MODEL 2905-6069-SHR
Long, Wide
Handle & SHORT HANDLE
2905
Flat Hook
3" Strap
Flat Hook
SUB 2905-6068 FOR: ANCRA 48987-20, KINEDYNE 552721
SUB 2905-6069 FOR: ANCRA 48987-21, KINEDYNE 553021 STRAP COLOR: YELLOW
SPECIAL ORDER ONLY 3" x 27' w/ CHAIN ANCHORS MODEL 2905-6072
SPECIAL ORDER ONLY 3" x 30' w/ CHAIN ANCHORS MODEL 2905-6073
Long, Wide
Handle
3" Strap 18" Chain Anchor
18" Chain Anchor
SUB 2905-6072 FOR: ANCRA 48987-24, KINEDYNE 552740
SUB 2905-6073 FOR: ANCRA 48987-25, KINEDYNE 553040
STRAP COLOR: YELLOW
WORKING LOAD LIMIT (WLL): 4,333 LBS / 1,965 Kg
BREAK STRENGTH (BS): 13,000 LBS / 5,896 Kg
NOTE:
FOR LOAD SECURING ONLY, NOT FOR LIFTING.
ALL RATCHET STRAP ASSEMBLIES SHOULD BE
INSPECTED FOR FRAYS, CUTS, OR DAMAGED FIXED LENGTH*
HARDWARE BEFORE AND AFTER USING. RATED WORKING LENGTH
DESIGNED TO MEET OR EXCEED WSTDA T-4 STANDARD. *FIXED LENGTH 18" EXCEPT
COMPLIES WITH DOT AND CA HIGHWAY PATROL TITLE 13. w/ CHAIN ANCHOR 33"
904-696-0010
E-mail: sales@buffersusa.com
2905-3 2/15/24
