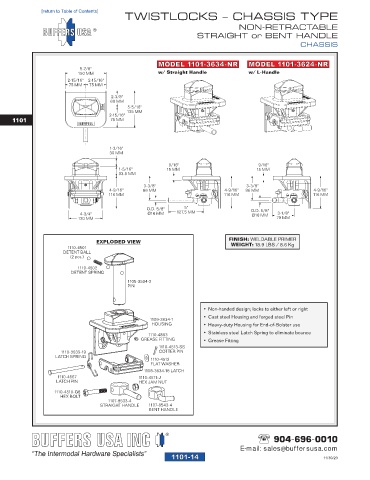

TWISTLOCKS – CHASSIS TYPE
NON-RETRACTABLE
STRAIGHT or BENT HANDLE
CHASSIS

MODEL 1101-3634-NR MODEL 1101-3624-NR
5-7/8"
150 MM w/ Straight Handle w/ L-Handle
2-15/16" 2-15/16"
75 MM 75 MM
2-3/8"
60 MM
5-5/16"
135 MM
2-15/16"
1101 75 MM

1-3/16"
30 MM

9/16" 9/16"
1-5/16" 15 MM 15 MM
33.5 MM
3-3/8" 3-3/8"
4-9/16" 86 MM 4-9/16" 86 MM 4-9/16"
116 MM 116 MM 116 MM
O.D. 5/8" 5" O.D. 5/8"
4-3/4" Ø16 MM 127.5 MM Ø16 MM 3-1/8"
120 MM 79 MM

FINISH: WELDABLE PRIMER
EXPLODED VIEW
1110-4501 WEIGHT: 18.9 LBS / 8.6 Kg
DETENT BALL
(2 pcs.)
1110-4502
DETENT SPRING
1105-3534-2
PIN

• Non-handed design; locks to either left or right
• Cast steel Housing and forged steel Pin
1109-3634-1
HOUSING • Heavy-duty Housing for End-of-Bolster use
1110-4503 • Stainless steel Latch Spring to eliminate bounce
GREASE FITTING • Grease Fitting
1110-4513-SS
1110-3533-19 COTTER PIN
LATCH SPRING
1110-4512
FLAT WASHER
1108-3634-18 LATCH
1110-4667 1110-4511-J
LATCH PIN HEX JAM NUT
1110-4510-G8
HEX BOLT
1107-8533-4
STRAIGHT HANDLE 1107-8543-4
BENT HANDLE

904-696-0010
